As described in the previous chapter, forms are decoupled from the actual data. To be able to select the form, potentially consisting of subforms, there is the FormAssociation, which defines a set of rules through which the form is assigned to a list, an object, or an extent.
The Models
FormAssociation
In this instance of the form association, the rule set is defined.
| Name | Meaning |
|---|---|
name |
Name of the form association |
formType |
Type of the form that can be assigned. The possible types can be found in the table below. |
metaClass |
If the selected object or the list behind it is of this object type, this association can be selected. |
extentType |
If the extent is of this type, this association can be selected. |
viewModeId |
If the user is in this view, this association can be selected. |
parentMetaClass |
If elements of a list are selected and the owning object is of this type, this can be selected. |
parentProperty |
If elements of a list are selected and this list is in this property of the owning object, this can be selected. |
form |
This describes the form that can be selected if the properties above match, as far as they are chosen. |
Form Types
| Name | Meaning | Form |
|---|---|---|
Detail |
The form is displayed for the detail view of an item. |
DetailForm, ExtentForm |
TreeItemExtent |
The form is displayed when the user has selected a specific extent and all elements of the extent should be displayed. |
ExtentForm |
TreeItemDetail |
The form is displayed when the user has selected a specific element and this element should now be displayed in the tree view. This type differs from Detail in that the window was not created dedicatedly for the element. |
ExtentForm |
ObjectList |
The form is displayed when all elements of a specific property are to be displayed in a sublist (SubElementField). |
ListForm |
TreeItemExtentExtension |
This form is added to the ExtentForm if the description of the form association matches the displayed form. |
Listform, DetailForm |
TreeItemDetailExtension |
This form is added to the ExtentForm if the description of the form association matches the displayed form. |
Listform, DetailForm |
Procedure Description

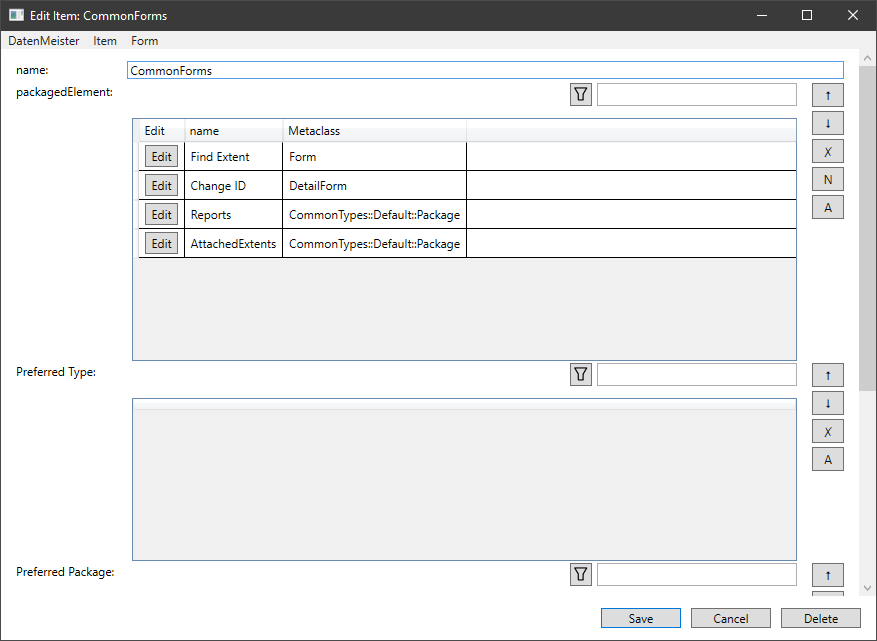

Detail View
In the detail view, the form association is searched for according to the following properties:
| Name | Meaning |
|---|---|
formType |
DetailForm |
metaClass |
The metaclass of the object that has been selected. |
extentType |
Types (separated by spaces) of the extent in which the displayed object is located. |
Extent View
In the extent view, the user can have either the extent itself or an element in the extent selected.
These form types are called TreeItemExtent and TreeItemDetail.
For the representation of the entire extent, the following properties are defined in the form association:
Extent Base Form for the Tree View
| Name | Meaning |
|---|---|
formType |
TreeItemExtent |
extentType |
Types of the extent to be displayed |
viewModeId |
The view selected by the user |
Extent List Form for the Tree View
The ExtentForm consists of several tabs. If a tab is automatically generated, a metaclass can be specified, which then contains the contents.
| Name | Meaning |
|---|---|
formType |
TreeItemExtent |
extentType |
Types of the extent to be displayed |
metaClass |
Metaclass of the objects to be displayed |
Extent Object Form for the Tree View
If the user selects an element in the tree view, the form association is searched for according to the following scheme (FormsPlugin.GetItemTreeFormForObject):
| Name | Meaning |
|---|---|
formType |
TreeItemDetail |
extentType |
Types of the extent to be displayed |
metaClass |
Metaclass of the object to be displayed |
viewModeId |
The view selected by the user. If a ViewMode is specified as a property in the package, then |
Extent Object List Form for the Tree View
If forms for an object view are generated automatically, depending on the configuration (ConfigurationFormCreatorSeparateProperties), either a ListForm for each type and each property is generated, or a ListForm for each property, which then contains all object types.
The following properties are used here:
| Name | Meaning |
|---|---|
formType |
TreeItemDetail |
extentType |
Types of the extent to be displayed |
parentMetaClass |
The metaclass of the objects that are selected. |
parentProperty |
The name of the property of the objects. |
Automatic Extension of Forms
After the form has been found, selected, and created, another query round defines whether further forms should be added.
For this purpose, the same form associations as shown above are used, but with a change in the form type:
-
TreeItemExtent ⇒ TreeItemExtentExtension
-
TreeItemDetail ⇒ TreeItemDetailExtension
A ListForm should be returned here.
